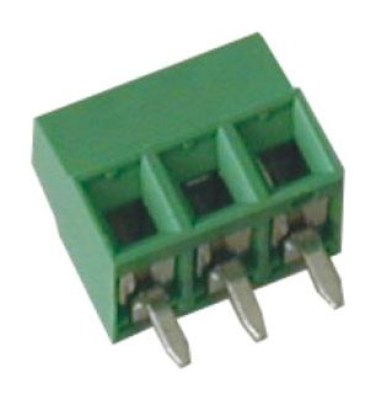

Single-deck terminal block - Stackable version - Pitch 3,81mm - 2÷12 poles
MV13__3_81_V_L
GENERAL INFORMATION
pitch 3,81 mm
Height 8.5 mm
Depth 7.3 mm
Dimensional class Bassa
Wire section 1.0 mm² / 16 AWG
Clamp opening size 1.8 x 1.8 mm
Wire stripping max 6 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 17,5 A
Voltage 130 V
impulse voltage 1.25 kV
MECHANICAL CHARACTERISTICS
Screw M2
Recommended torque 0.2÷0.22 Nm / 1.8÷2 in.lbs
APPROVALS DATA
EN 60998-1 UL 1059
Current 13.5 A - 12 A factory / 10 A field
Voltage 130 V - 150 V
Wire section 1.0 mm² - 16 AWG
Torque 0.2 Nm - 1.8 Lb-in
FILE CA02.04718 - E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
ClampTin-plated copper alloy
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
2MV132-3,81-V-LClick here to download the file
3MV133-3,81-V-LClick here to download the file
4MV134-3,81-V-LClick here to download the file
5MV135-3,81-V-LClick here to download the file
6MV136-3,81-V-LClick here to download the file
7MV137-3,81-V-LClick here to download the file
8MV138-3,81-V-LClick here to download the file
9MV139-3,81-V-LClick here to download the file
10MV1310-3,81-V-LClick here to download the file
11MV1311-3,81-V-LClick here to download the file
12MV1312-3,81-V-LClick here to download the file
DIMENSIONAL IMAGE
