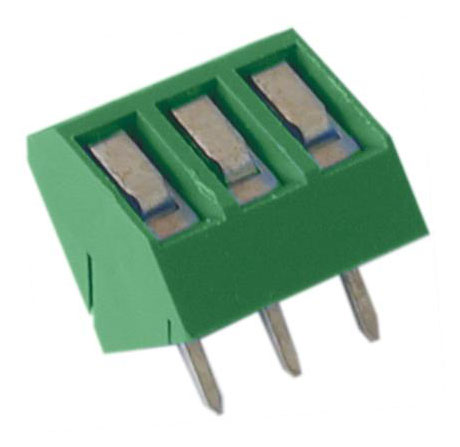

Single-deck terminal block - 45° angled - Modular version - Pitch 5mm - 2÷3 poles
MIP25__5_IQ
GENERAL INFORMATION
pitch 5 mm
Height 12.5 mm
Depth 12.5 mm
Dimensional class Media
Wire section 2.5 mm² / 14 AWG
Clamp opening size 2.8 x 2.5 mm
Wire stripping max 8 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 24 A
Voltage 250 V
impulse voltage 2 kV
MECHANICAL CHARACTERISTICS
Screw M3
Recommended torque 0.5÷0.55 Nm / 4.5÷4.9 in.lbs
APPROVALS DATA
UL 1059
Current - - 24 A factory / 20 A field
Voltage - - 300 V
Wire section - - 12 AWG
Torque - - 4.5 Lb-in
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
ClampNickel-plated copper alloy
Terminal Tin-plated copper alloy
SCIP Numberc6a908f2-e615-4316-8cfd-eecbcad9d712
COLOURS
Standard On request
POLESNAME3D FILE
2MIP252-5-IQFile not available for this product
3MIP253-5-IQFile not available for this product
