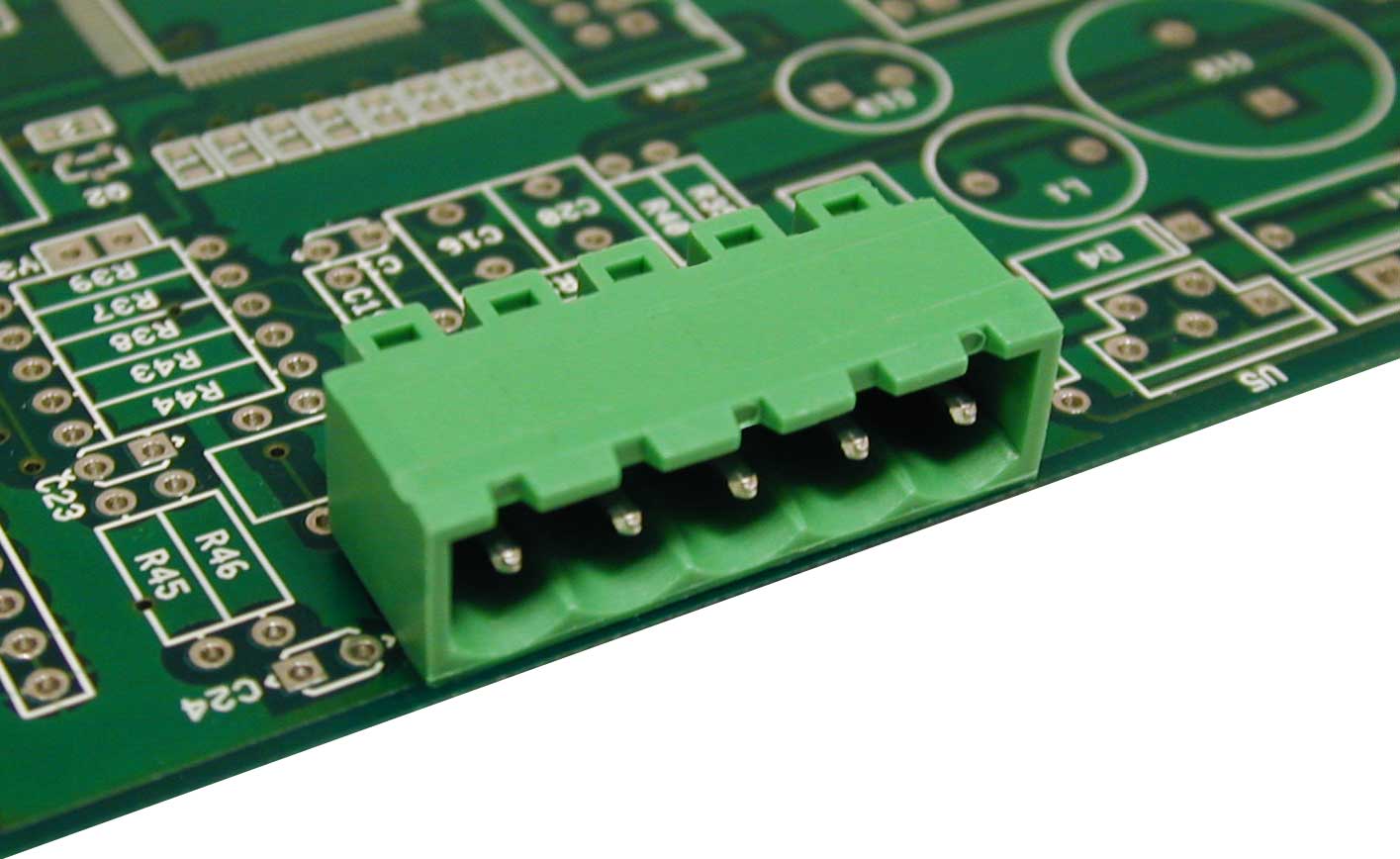

| GENERAL INFORMATION |
| pitch |
10,16 mm |
| Height |
8.5 mm |
| Depth |
12.2 mm |
| Dimensional class |
Media |
| Wire section |
- |
| Clamp opening size |
- |
| Wire stripping |
- |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
15 A |
| Voltage |
500 V |
| impulse voltage |
6 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
- |
| Recommended torque |
- |
| APPROVALS DATA |
|
 |
 |
 |
|
EN 61984 |
EN 61984 |
UL 1059 |
| Current |
15 A |
15 A |
12 A factory / 12 A field |
| Voltage |
500 V |
500 V |
600 V |
| Wire section |
- |
- |
- |
| Torque |
- |
- |
- |
| FILE |
CA02.04178 |
40005779 |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
- |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
 |
 |
| POLES | NAME | 3D FILE | | 02 | PV02-10,16-H-P | Click here to download the file | | 03 | PV03-10,16-H-P | Click here to download the file | | 04 | PV04-10,16-H-P | Click here to download the file | | 05 | PV05-10,16-H-P | Click here to download the file | | 06 | PV06-10,16-H-P | Click here to download the file | | 07 | PV07-10,16-H-P | File not available for this product | | 08 | PV08-10,16-H-P | File not available for this product | | 09 | PV09-10,16-H-P | File not available for this product | | 10 | PV10-10,16-H-P | File not available for this product | | 11 | PV11-10,16-H-P | File not available for this product | | 12 | PV12-10,16-H-P | File not available for this product |
|

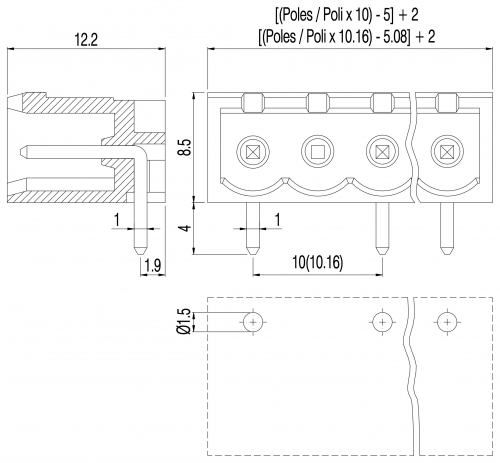

| DIMENSIONAL IMAGE |  |
|
