SV__-7,62-F

PDF

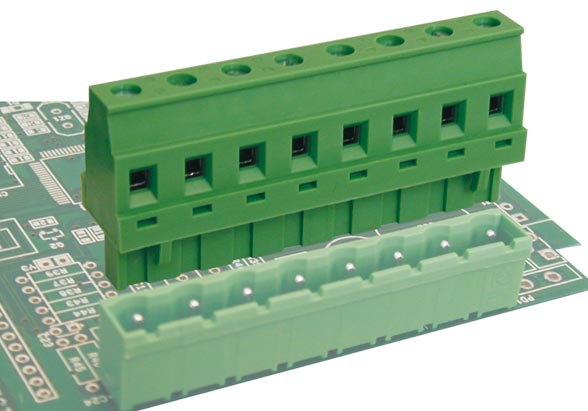

Female plug-in connector - Side-by-side - Frontal - Stackable version - Pitch 7,62mm - 02 ÷ 16 poles
SV___7_62_F_54bfd4eb4a1d7
GENERAL INFORMATION
pitch 7,62 mm
Height 27.6 mm
Depth 12.7 mm
Dimensional class Media
Wire section 2.5 mm² / 14 AWG
Clamp opening size 2.8 x 3.1 mm
Wire stripping max 9 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 16 A
Voltage 500 V
impulse voltage 6 kV
MECHANICAL CHARACTERISTICS
Screw M3
Recommended torque 0.5÷0.55 Nm / 4.5÷4.9 in.lbs
APPROVALS DATA
EN 61984 EN 61984 UL 1059
Current 16 A 15 A 12 A factory / 12 A field
Voltage 500 V 400 V 300 V
Wire section 2,5 mm² 2,5 mm² 14 AWG
Torque 0,5 Nm 0,5 Nm 4,5 Lb-in
FILE CA02.04178 40005779 E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
Clamp-
Terminal Nickel-plated copper alloy
SCIP Number269cc4c7-8d06-4994-abfa-5163d2b356bd
COLOURS
Standard On request
POLESNAME3D FILE
02SV02-7,62-FClick here to download the file
03SV03-7,62-FClick here to download the file
04SV04-7,62-FClick here to download the file
05SV05-7,62-FClick here to download the file
06SV06-7,62-FClick here to download the file
07SV07-7,62-FClick here to download the file
08SV08-7,62-FClick here to download the file
09SV09-7,62-FClick here to download the file
10SV10-7,62-FFile not available for this product
11SV11-7,62-FFile not available for this product
12SV12-7,62-FFile not available for this product
13SV13-7,62-FFile not available for this product
14SV14-7,62-FFile not available for this product
15SV15-7,62-FFile not available for this product
16SV16-7,62-FFile not available for this product

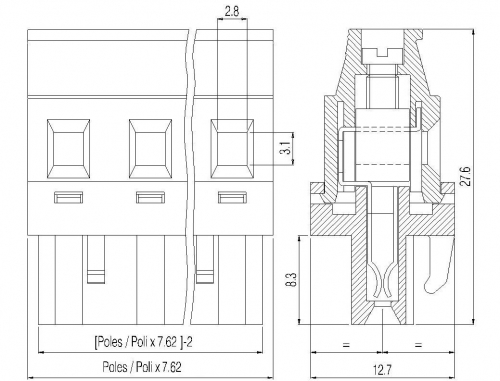

DIMENSIONAL IMAGE
