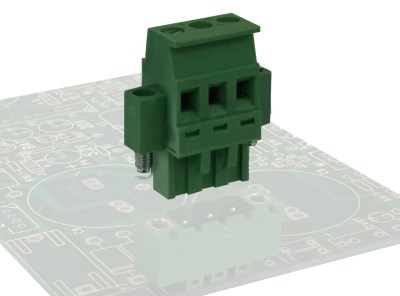

GENERAL INFORMATION |
pitch |
10,16 mm |
Height |
27.6 mm |
Depth |
13.5 mm |
Dimensional class |
Media |
Wire section |
2.5 mm² / 14 AWG |
Clamp opening size |
2.8 x 3.1 mm |
Wire stripping |
max 9 mm |
Operating temperature |
-40 ÷ +130 °C |
ELECTRICAL CHARACTERISTICS |
Current |
16 A |
Voltage |
500 V |
impulse voltage |
6 kV |
MECHANICAL CHARACTERISTICS |
Screw |
M3 |
Recommended torque |
0.5÷0.55 Nm / 4.5÷4.9 in.lbs |
APPROVALS DATA |
|
![](/images/imq.png) |
![](/images/vde.png) |
![](/images/cUL_p.png) |
|
EN 61984 |
EN 61984 |
UL 1059 |
Current |
16 A |
15 A |
12 A factory / 12 A field |
Voltage |
500 V |
500 V |
600 V |
Wire section |
2.5 mm² |
2.5 mm² |
14 AWG |
Torque |
0.5 Nm |
0.5 Nm |
4.5 Lb-in |
FILE |
CA02.04178 |
40005779 |
E178356 |
MATERIALS |
Housing |
PA - UL 94 V0 |
Screw |
Galvanized steel |
Clamp | Nickel-plated copper alloy |
Terminal |
Nickel-plated copper alloy |
SCIP Number | 269cc4c7-8d06-4994-abfa-5163d2b356bd |
COLOURS |
Standard |
On request |
![](/images/GN.jpg) |
![](/images/GY_BK_BL_RD_YL_OG.png) |
POLES | NAME | 3D FILE | 02 | SV02-10,16-F-K | File not available for this product | 03 | SV03-10,16-F-K | File not available for this product | 04 | SV04-10,16-F-K | File not available for this product | 05 | SV05-10,16-F-K | File not available for this product | 06 | SV06-10,16-F-K | File not available for this product | 07 | SV07-10,16-F-K | File not available for this product | 08 | SV08-10,16-F-K | File not available for this product | 09 | SV09-10,16-F-K | File not available for this product | 10 | SV10-10,16-F-K | File not available for this product | 11 | SV11-10,16-F-K | File not available for this product |
|
DIMENSIONAL IMAGE | ![](https://www.euroclamp.it/dimensional_images/dim_SV__-10%2C16-F-K.jpg) |
|
