SH__-7,62-K-S

PDF

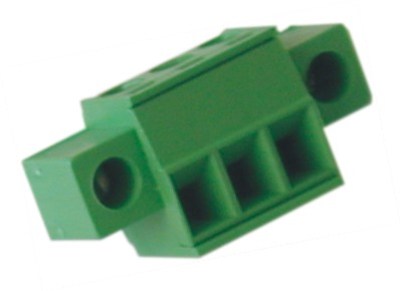

Female plug-in connector - w/flange screw - Pitch 7,62mm - 02 ÷ 11 poles
SH___7_62_K_S_4dd2353a78371
GENERAL INFORMATION
pitch 7,62 mm
Height 11.1 mm
Depth 15.5 mm
Dimensional class Media
Wire section 2.5 mm² / 14 AWG
Clamp opening size 1.8 x 2.6 mm
Wire stripping max 8 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 11 A
Voltage 500 V
impulse voltage 6 kV
MECHANICAL CHARACTERISTICS
Screw M2
Recommended torque 0.25÷0.27 Nm / 2.3÷2.5 in.lbs
APPROVALS DATA
EN 61984 UL 1059
Current - 11 A 11 A factory / 11 A field
Voltage - 500 V 300 V
Wire section - 2.5 mm² 14 AWG
Torque - 0.25 Nm 2.3 Lb-in
FILE - 40048261 E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
ClampNickel-plated copper alloy
Terminal Copper alloy
SCIP Number2b16c5e0-b81c-4d1f-839d-5472703af01d
COLOURS
Standard On request
POLESNAME3D FILE
02SH02-7,62-K-SClick here to download the file
03SH03-7,62-K-SClick here to download the file
04SH04-7,62-K-SClick here to download the file
05SH05-7,62-K-SClick here to download the file
06SH06-7,62-K-SClick here to download the file
07SH07-7,62-K-SClick here to download the file
08SH08-7,62-K-SClick here to download the file
09SH09-7,62-K-SClick here to download the file
10SH10-7,62-K-SClick here to download the file
11SH11-7,62-K-SClick here to download the file
DIMENSIONAL IMAGE
