PVSF__-5-V-D28-1F

PDF

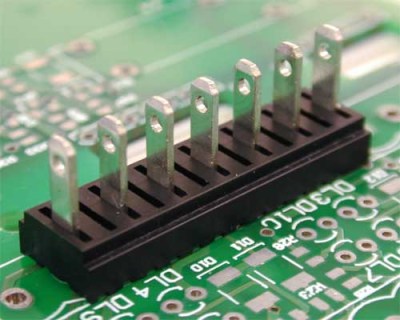

Male plug-in connector - Faston type: 2.8x0.8 - Pitch 5mm - Double PIN - 02÷30 poles
PVSF___5_V_D28_1_59e9ff1ed0461
GENERAL INFORMATION
pitch 5 mm
Height 12.65 mm
Depth 9.7 mm
Dimensional class Alta
Wire section -
Clamp opening size -
Wire stripping -
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 17,5 A
Voltage 250 V
impulse voltage 4 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 10 A factory / 5 A field
Voltage - - 300 V
Wire section - - -
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal -
SCIP Numbere7871ea5-2cf8-4f17-b626-38a85b04faba
COLOURS
Standard On request
POLESNAME3D FILE
02PVSF02-5-V-D28-1FFile not available for this product
03PVSF03-5-V-D28-1FFile not available for this product
04PVSF04-5-V-D28-1FFile not available for this product
05PVSF05-5-V-D28-1FFile not available for this product
06PVSF06-5-V-D28-1FFile not available for this product
07PVSF07-5-V-D28-1FFile not available for this product
08PVSF08-5-V-D28-1FFile not available for this product
09PVSF09-5-V-D28-1FFile not available for this product
10PVSF10-5-V-D28-1FFile not available for this product
11PVSF11-5-V-D28-1FFile not available for this product
12PVSF12-5-V-D28-1FFile not available for this product
13PVSF13-5-V-D28-1FFile not available for this product
14PVSF14-5-V-D28-1FFile not available for this product
15PVSF15-5-V-D28-1FFile not available for this product
16PVSF16-5-V-D28-1FFile not available for this product
17PVSF17-5-V-D28-1FFile not available for this product
18PVSF18-5-V-D28-1FFile not available for this product
19PVSF19-5-V-D28-1FFile not available for this product
20PVSF20-5-V-D28-1FFile not available for this product
21PVSF21-5-V-D28-1FFile not available for this product
22PVSF22-5-V-D28-1FFile not available for this product
23PVSF23-5-V-D28-1FFile not available for this product
24PVSF24-5-V-D28-1FFile not available for this product
DIMENSIONAL IMAGE
