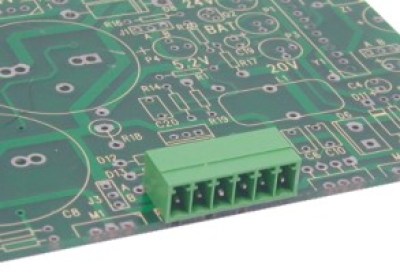

PV__-3,81-H-P

Male plug-in connector - with closed ends - Pitch 3,81mm - 02 ÷ 24 poles

GENERAL INFORMATION

pitch

3,81 mm

Height

7.25 mm

Depth

9.2 mm

Dimensional class

Bassa

Wire section

Clamp opening size

Wire stripping

Operating temperature

-40 ÷ +130 °C

ELECTRICAL CHARACTERISTICS

Current

11 A

Voltage

160 V

impulse voltage

2.5 kV

MECHANICAL CHARACTERISTICS

Screw

Recommended torque

APPROVALS DATA

EN 61984

UL 1059

Current

11 A

11 A factory / 11 A field

Voltage

200 V

300 V

Wire section

Torque

FILE

40048261

E178356

MATERIALS

Housing

PA - UL 94 V0

Screw

Clamp

Terminal

Tin-plated copper alloy

SCIP Number

892ed63d-670d-4367-9365-34dfcaff593c

COLOURS

Standard

On request

POLES	NAME	3D FILE
02	PV02-3,81-H-P	Click here to download the file
03	PV03-3,81-H-P	Click here to download the file
04	PV04-3,81-H-P	Click here to download the file
05	PV05-3,81-H-P	Click here to download the file
06	PV06-3,81-H-P	Click here to download the file
07	PV07-3,81-H-P	Click here to download the file
08	PV08-3,81-H-P	Click here to download the file
09	PV09-3,81-H-P	Click here to download the file
10	PV10-3,81-H-P	Click here to download the file
11	PV11-3,81-H-P	Click here to download the file
12	PV12-3,81-H-P	Click here to download the file
13	PV13-3,81-H-P	File not available for this product
14	PV14-3,81-H-P	File not available for this product
15	PV15-3,81-H-P	File not available for this product
16	PV16-3,81-H-P	File not available for this product
17	PV17-3,81-H-P	File not available for this product
18	PV18-3,81-H-P	File not available for this product
19	PV19-3,81-H-P	File not available for this product
20	PV20-3,81-H-P	File not available for this product
21	PV21-3,81-H-P	File not available for this product
22	PV22-3,81-H-P	File not available for this product
23	PV23-3,81-H-P	File not available for this product
24	PV24-3,81-H-P	File not available for this product

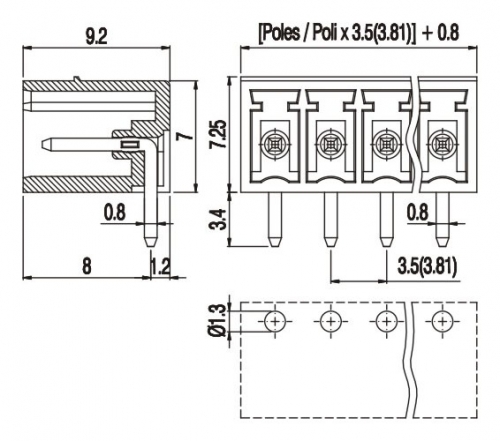

DIMENSIONAL IMAGE
