PF__-5-H-M

PDF

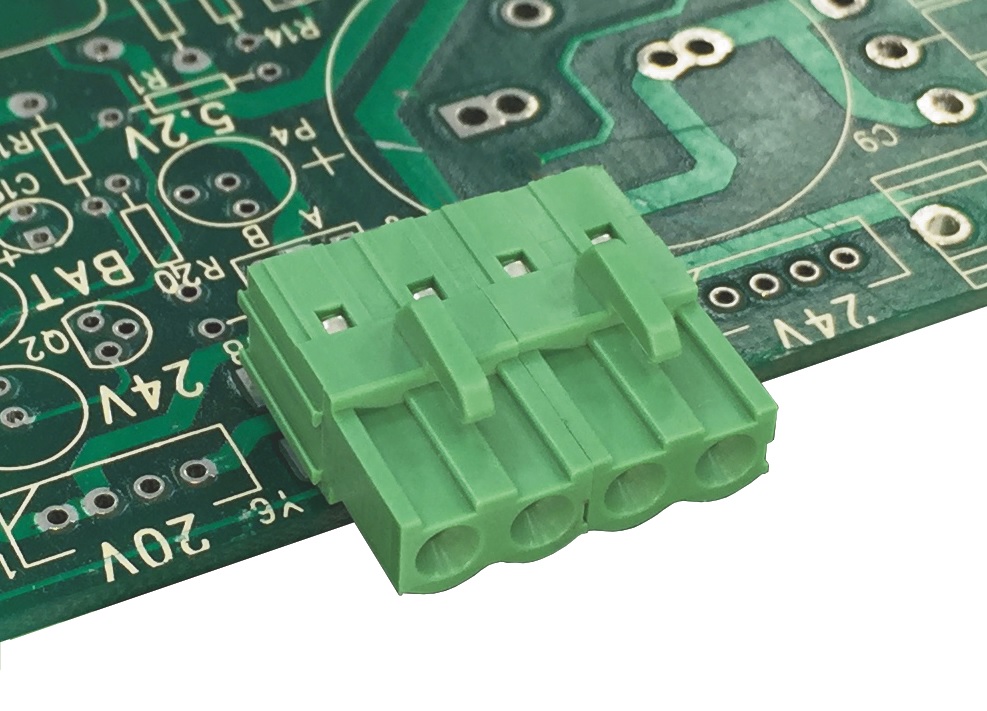

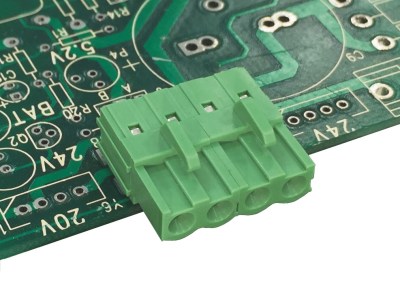

Male plug-in connector - Horizontal - Modular version - Pitch 5,0mm - 02÷12 poles
PF___5_H_M
GENERAL INFORMATION
pitch 5 mm
Height 7.7 mm
Depth 18.85 mm
Dimensional class Media
Wire section -
Clamp opening size -
Wire stripping -
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 15 A
Voltage 250 V
impulse voltage 4 kV
MECHANICAL CHARACTERISTICS
Screw -
Recommended torque -
APPROVALS DATA
UL 1059
Current - - 22 A factory / 20 A field
Voltage - - 300 V
Wire section - - -
Torque - - -
FILE - - E178356
MATERIALS
Housing PA - UL 94 V0
Screw -
Clamp-
Terminal Tin-plated copper alloy
COLOURS
Standard On request
POLESNAME3D FILE
02PF02-5-H-MFile not available for this product
03PF03-5-H-MFile not available for this product
04PF04-5-H-MFile not available for this product
05PF05-5-H-MFile not available for this product
06PF06-5-H-MFile not available for this product
07PF07-5-H-MFile not available for this product
08PF08-5-H-MFile not available for this product
09PF09-5-H-MFile not available for this product
10PF10-5-H-MFile not available for this product
11PF11-5-H-MFile not available for this product
12PF12-5-H-MFile not available for this product
DIMENSIONAL IMAGE
