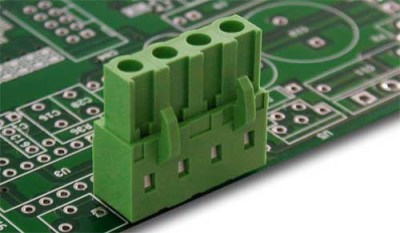

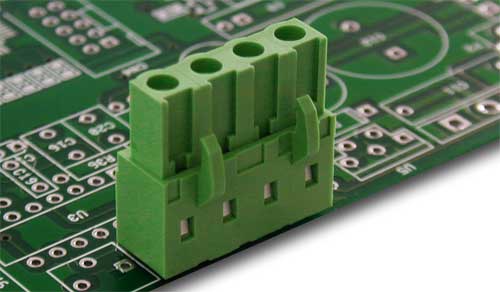

| GENERAL INFORMATION |
| pitch |
5 mm |
| Height |
19 mm |
| Depth |
7.7 mm |
| Dimensional class |
Media |
| Wire section |
- |
| Clamp opening size |
- |
| Wire stripping |
- |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
15 A |
| Voltage |
250 V |
| impulse voltage |
4 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
- |
| Recommended torque |
- |
| APPROVALS DATA |
|
 |
 |
 |
|
|
|
UL 1059 |
| Current |
- |
- |
22 A factory / 20 A field |
| Voltage |
- |
- |
300 V |
| Wire section |
- |
- |
- |
| Torque |
- |
- |
- |
| FILE |
- |
- |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
- |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
 |
 |
| POLES | NAME | 3D FILE | | 02 | PF02-5,0-V | File not available for this product | | 03 | PF03-5,0-V | File not available for this product | | 04 | PF04-5,0-V | File not available for this product | | 05 | PF05-5,0-V | File not available for this product | | 06 | PF06-5,0-V | File not available for this product | | 07 | PF07-5,0-V | File not available for this product | | 08 | PF08-5,0-V | File not available for this product | | 09 | PF09-5,0-V | File not available for this product | | 10 | PF10-5,0-V | File not available for this product | | 11 | PF11-5,0-V | File not available for this product | | 12 | PF12-5,0-V | File not available for this product |
|
| DIMENSIONAL IMAGE |  |
|
