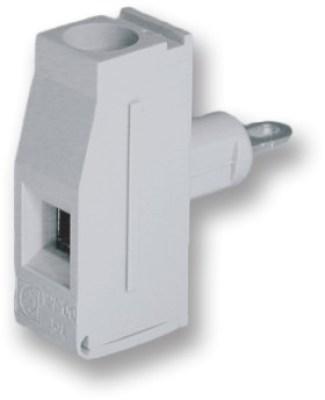

| GENERAL INFORMATION |
| pitch |
10 mm |
| Height |
31.6 mm |
| Depth |
14.5 mm |
| Dimensional class |
n/a |
| Wire section |
10 mm² / 8 AWG |
| Clamp opening size |
- |
| Wire stripping |
max 13.5 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
57 A |
| Voltage |
450 V |
| impulse voltage |
2.5 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
M4 |
| Recommended torque |
1.2÷1.32 Nm / 10.8÷11.9 in.lbs |
| APPROVALS DATA |
|
 |
 |
 |
|
EN 60998-1 |
EN 60998-1 |
UL 1059 |
| Current |
57 A |
57 A |
65 A factory / 65 A field |
| Voltage |
450 V |
450 V |
600 V |
| Wire section |
10 mm² |
10 mm² |
6 AWG |
| Torque |
1.2 Nm |
1.2 Nm |
15.8 Lb-in |
| FILE |
CA02.01616 |
40014733 |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
Galvanized steel |
| Clamp | Nickel-plated copper alloy |
| Terminal |
Tin-plated copper alloy |
| SCIP Number | 912fc021-fcc9-4f5c-b3f7-60185c8bdc2b |
| COLOURS |
|
Standard |
On request |
 |
 |
|
|
| DIMENSIONAL IMAGE |
 |
