MG1__-5-V

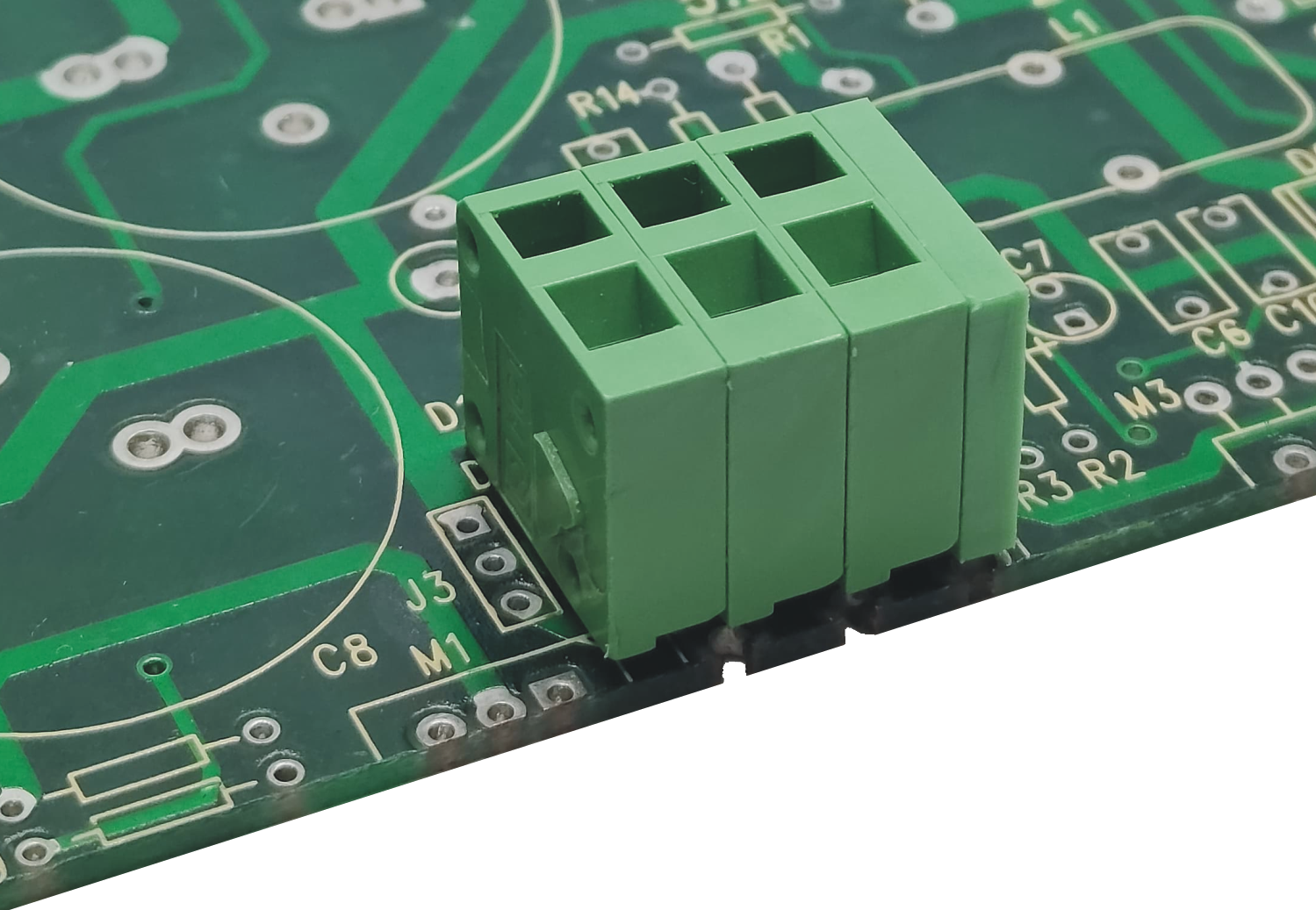

Screwless terminal block - Vertical - Modular version - Pitch 5mm

GENERAL INFORMATION

pitch

5 mm

Height

13.2 mm

Depth

15.4 mm

Dimensional class

Bassa

Wire section

2.5 mm² / 14 AWG

Clamp opening size

2.45 x 2.45 mm

Wire stripping

max 9 mm

Operating temperature

-40 ÷ +130 °C

ELECTRICAL CHARACTERISTICS

Current

24 A

Voltage

450 V

impulse voltage

2 kV

MECHANICAL CHARACTERISTICS

Screw

Recommended torque

APPROVALS DATA

UL 1059

Current

17 A factory / 17 A field

Voltage

300 V

Wire section

12 AWG

Torque

FILE

E178356

MATERIALS

Housing

PA - UL 94 V0

Screw

Spring

Spring steel

Terminal

Tin-plated copper alloy

COLOURS

Standard

On request

POLES	NAME	3D FILE
01	MG101-5-V	File not available for this product
02	MG102-5-V	File not available for this product
03	MG103-5-V	File not available for this product
04	MG104-5-V	File not available for this product
05	MG105-5-V	File not available for this product
06	MG106-5-V	File not available for this product
07	MG107-5-V	File not available for this product
08	MG108-5-V	File not available for this product
09	MG109-5-V	File not available for this product
10	MG110-5-V	File not available for this product
11	MG111-5-V	File not available for this product
12	MG112-5-V	File not available for this product
13	MG113-5-V	File not available for this product
14	MG114-5-V	File not available for this product
15	MG115-5-V	File not available for this product
16	MG116-5-V	File not available for this product
17	MG117-5-V	File not available for this product
18	MG118-5-V	File not available for this product
19	MG119-5-V	File not available for this product
20	MG120-5-V	File not available for this product
21	MG121-5-V	File not available for this product
22	MG122-5-V	File not available for this product
23	MG123-5-V	File not available for this product

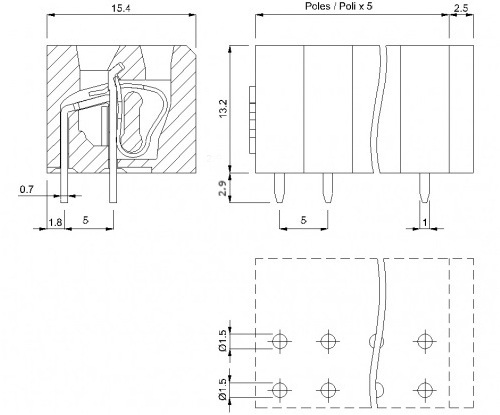

DIMENSIONAL IMAGE
