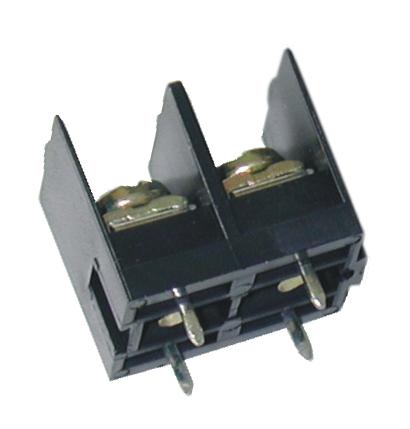

| GENERAL INFORMATION |
| pitch |
10 mm |
| Height |
17.5 mm |
| Depth |
16 mm |
| Dimensional class |
Media |
| Wire section |
2x2.5 mm² / 2x14 AWG |
| Clamp opening size |
- |
| Wire stripping |
max 11 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
25 A |
| Voltage |
750 V |
| impulse voltage |
3 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
M3.5 |
| Recommended torque |
0.8÷0.88 Nm / 7.2÷7.9 in.lbs |
| APPROVALS DATA |
|
 |
 |
 |
|
EN 60998-1 |
EN 60998-1 |
UL 1059 |
| Current |
25 A |
25 A |
15 A factory / 20 A field |
| Voltage |
750 V |
750 V |
600 V |
| Wire section |
2x2.5 mm² |
2x2.5 mm² |
12 AWG |
| Torque |
0.8 Nm |
0.8 Nm |
7.2 Lb-in |
| FILE |
EQ203 |
40019721 |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
Galvanized steel |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
|
|
 |
|
|
| DIMENSIONAL IMAGE |
 |
