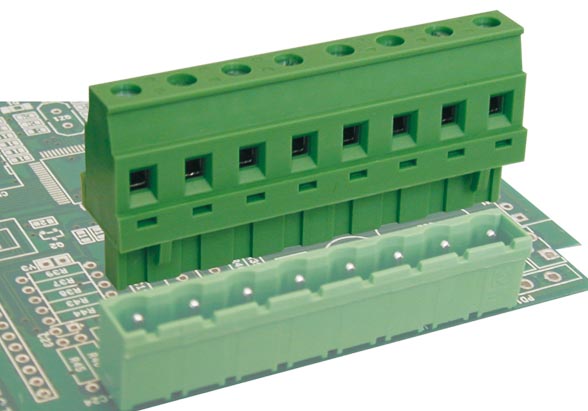

| GENERAL INFORMATION |
| pitch |
7,5 mm |
| Height |
27.6 mm |
| Depth |
12.7 mm |
| Dimensional class |
Media |
| Wire section |
2.5 mm² / 14 AWG |
| Clamp opening size |
2.8 x 3.1 mm |
| Wire stripping |
max 9 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
16 A |
| Voltage |
500 V |
| impulse voltage |
6 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
M3 |
| Recommended torque |
0.5÷0.55 Nm / 4.5÷4.9 in.lbs |
| APPROVALS DATA |
|
 |
 |
 |
|
EN 61984 |
EN 61984 |
UL 1059 |
| Current |
16 A |
15 A |
12 A factory / 12 A field |
| Voltage |
500 V |
400 V |
300 V |
| Wire section |
2,5 mm² |
2,5 mm² |
14 AWG |
| Torque |
0,5 Nm |
0,5 Nm |
4,5 Lb-in |
| FILE |
CA02.04178 |
40005779 |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
Galvanized steel |
| Clamp | - |
| Terminal |
Nickel-plated copper alloy |
| SCIP Number | 269cc4c7-8d06-4994-abfa-5163d2b356bd |
| COLOURS |
|
Standard |
On request |
 |
 |
| POLES | NAME | 3D FILE | | 02 | SV02-7,5-F | Click here to download the file | | 03 | SV03-7,5-F | Click here to download the file | | 04 | SV04-7,5-F | Click here to download the file | | 05 | SV05-7,5-F | Click here to download the file | | 06 | SV06-7,5-F | Click here to download the file | | 07 | SV07-7,5-F | File not available for this product | | 08 | SV08-7,5-F | File not available for this product | | 09 | SV09-7,5-F | File not available for this product | | 10 | SV10-7,5-F | File not available for this product | | 11 | SV11-7,5-F | File not available for this product |
|
| DIMENSIONAL IMAGE |  |
|
