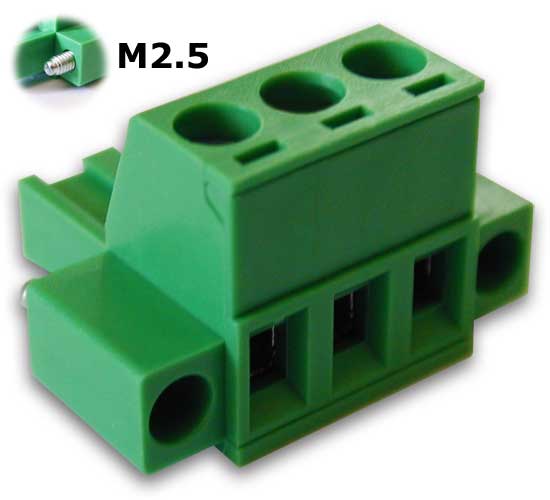

| GENERAL INFORMATION |
| pitch |
10,16 mm |
| Height |
15.5 mm |
| Depth |
18.8 mm |
| Dimensional class |
Media |
| Wire section |
2.5 mm² / 14 AWG |
| Clamp opening size |
2.8 x 3.1 mm |
| Wire stripping |
max 8 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
16 A |
| Voltage |
500 V |
| impulse voltage |
6 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
M3 |
| Recommended torque |
0.5÷0.55 Nm / 4.5÷4.9 in.lbs |
| APPROVALS DATA |
|
 |
 |
 |
|
EN 61984 |
EN 61984 |
UL 1059 |
| Current |
16 A |
15 A |
12 A factory / 12 A field |
| Voltage |
500 V |
500 V |
600 V |
| Wire section |
2.5 mm² |
2.5 mm² |
14 AWG |
| Torque |
0.5 Nm |
0.5 Nm |
4.5 Lb-in |
| FILE |
CA02.04178 |
40005779 |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
Galvanized steel |
| Clamp | Nickel-plated copper alloy |
| Terminal |
Copper alloy |
| SCIP Number | 2b16c5e0-b81c-4d1f-839d-5472703af01d |
| COLOURS |
|
Standard |
On request |
 |
 |
| POLES | NAME | 3D FILE | | 02 | SH02-10,16-K2 | File not available for this product | | 03 | SH03-10,16-K2 | File not available for this product | | 04 | SH04-10,16-K2 | File not available for this product | | 05 | SH05-10,16-K2 | File not available for this product | | 06 | SH06-10,16-K2 | File not available for this product | | 07 | SH07-10,16-K2 | File not available for this product | | 08 | SH08-10,16-K2 | File not available for this product | | 09 | SH09-10,16-K2 | File not available for this product | | 10 | SH10-10,16-K2 | File not available for this product | | 11 | SH11-10,16-K2 | File not available for this product |
|
