| GENERAL INFORMATION |
| pitch |
5,08 mm |
| Height |
22.3 mm |
| Depth |
28.82 mm |
| Dimensional class |
Media |
| Wire section |
- |
| Clamp opening size |
- |
| Wire stripping |
- |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
10 A |
| Voltage |
500 V |
|
Test Voltage |
6 kVrms/60s |
| MECHANICAL CHARACTERISTICS |
| Screw |
- |
| Recommended torque |
- |
| APPROVALS DATA |
|
 |
 |
 |
|
EN 61984 |
EN 61984 |
UL 1059 |
| Current |
12 A |
12 A |
12 A factory / 12 A field |
| Voltage |
250 V |
250 V |
300 V |
| Wire section |
- |
- |
- |
| Torque |
- |
- |
- |
| FILE |
CA02.04178 |
40005779 |
E178356 |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
- |
| Clamp | - |
| Terminal |
Tin-plated copper alloy |
| COLOURS |
|
Standard |
On request |
|
|
 |
| POLES | NAME | 3D FILE | | 02 | PDV02-5,08 | File not available for this product | | 03 | PDV03-5,08 | File not available for this product | | 04 | PDV04-5,08 | File not available for this product | | 05 | PDV05-5,08 | File not available for this product | | 06 | PDV06-5,08 | File not available for this product | | 07 | PDV07-5,08 | File not available for this product | | 08 | PDV08-5,08 | File not available for this product | | 09 | PDV09-5,08 | File not available for this product | | 10 | PDV10-5,08 | File not available for this product | | 11 | PDV11-5,08 | File not available for this product | | 12 | PDV12-5,08 | File not available for this product |
|

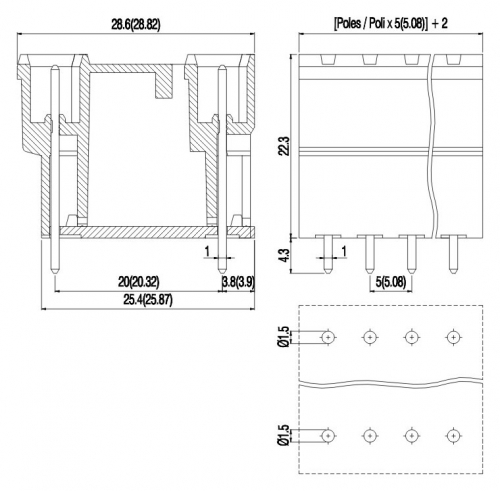

| DIMENSIONAL IMAGE |  |
|
