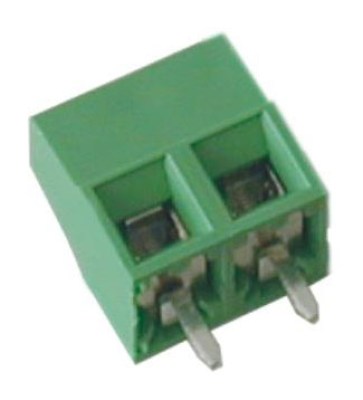

MV15_-5,08-V-L

PDF
Single-deck terminal block - Stackable version - Pitch 5,08mm - 2÷12 poles
MV15__5_08_V_L
GENERAL INFORMATION
pitch 5,08 mm
Height 10.6 mm
Depth 8.1 mm
Dimensional class Bassa
Wire section 1.5 mm² / 16 AWG
Clamp opening size 2.6 x 2 mm
Wire stripping max 6 mm
Operating temperature -40 ÷ +130 °C
ELECTRICAL CHARACTERISTICS
Current 13.5 A
Voltage 250 V
impulse voltage 2 kV
MECHANICAL CHARACTERISTICS
Screw M3
Recommended torque 0.5÷0.55 Nm / 4.5÷4.9 in.lbs
APPROVALS DATA
EN 60998-1 UL 1059
Current 13.5 A - 13.5 A factory / 10 A field
Voltage 250 V - 300 V
Wire section 1.5 mm² - 16 AWG
Torque 0.5 Nm - 4.5 Lb-in
FILE EQ202 - E178356
MATERIALS
Housing PA - UL 94 V0
Screw Galvanized steel
ClampNickel-plated copper alloy
Terminal Tin-plated copper alloy
SCIP Number8e28a064-07ab-45c1-afc0-7873209ceda4
COLOURS
Standard On request
POLESNAME3D FILE
2MV152-5,08-V-LFile not available for this product
3MV153-5,08-V-LFile not available for this product
4MV154-5,08-V-LFile not available for this product
5MV155-5,08-V-LFile not available for this product
6MV156-5,08-V-LFile not available for this product
7MV157-5,08-V-LFile not available for this product
8MV158-5,08-V-LFile not available for this product
9MV159-5,08-V-LFile not available for this product
10MV1510-5,08-V-LFile not available for this product
11MV1511-5,08-V-LFile not available for this product
12MV1512-5,08-V-LFile not available for this product

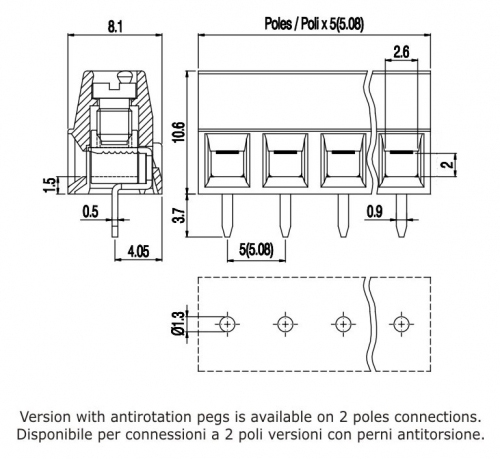

DIMENSIONAL IMAGE
