| GENERAL INFORMATION |
| pitch |
12,7 mm |
| Height |
29 mm |
| Depth |
17.25 mm |
| Dimensional class |
Alta |
| Wire section |
10 mm² / 8 AWG |
| Clamp opening size |
5.4 x 5.8 mm |
| Wire stripping |
max 15 mm |
| Operating temperature |
-40 ÷ +130 °C |
| ELECTRICAL CHARACTERISTICS |
| Current |
42 A |
| Voltage |
1000 V |
| impulse voltage |
3,5 kV |
| MECHANICAL CHARACTERISTICS |
| Screw |
M4 |
| Recommended torque |
1.2÷1.5 Nm / 10.8÷13.6 in.lbs |
| APPROVALS DATA |
|
 |
 |
 |
|
|
EN 60998-1 |
|
| Current |
- |
49 A |
- |
| Voltage |
- |
1000 V |
- |
| Wire section |
- |
16 mm² |
- |
| Torque |
- |
1.5 Nm |
- |
| FILE |
- |
40034945 |
- |
| MATERIALS |
| Housing |
PA - UL 94 V0 |
| Screw |
Galvanized steel |
| Clamp | Nickel-plated copper alloy |
| Terminal |
Tin-plated copper alloy |
| SCIP Number | 0e22b4d0-f741-437c-bf88-e67efc1bf4a7 |
| COLOURS |
|
Standard |
On request |
 |
 |

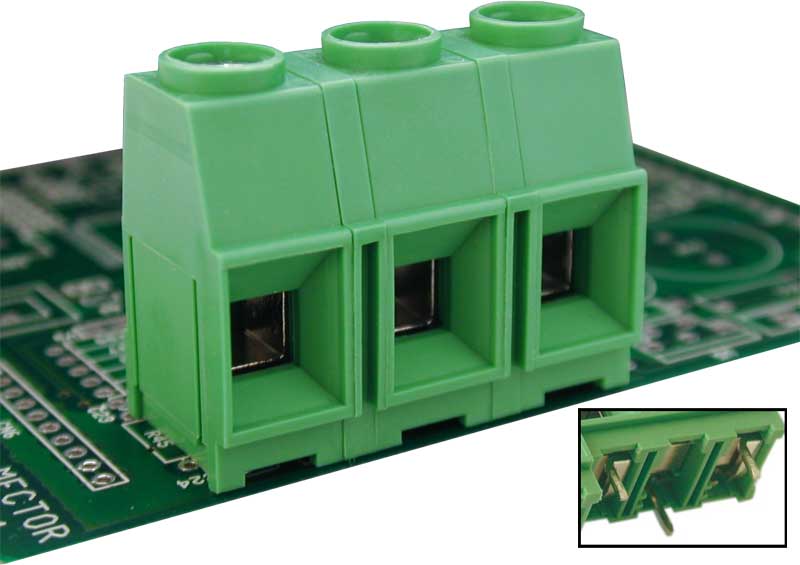

| POLES | NAME | 3D FILE | | 1 | MV101-12,7-V-A | File not available for this product |
|
| DIMENSIONAL IMAGE |  |
|
